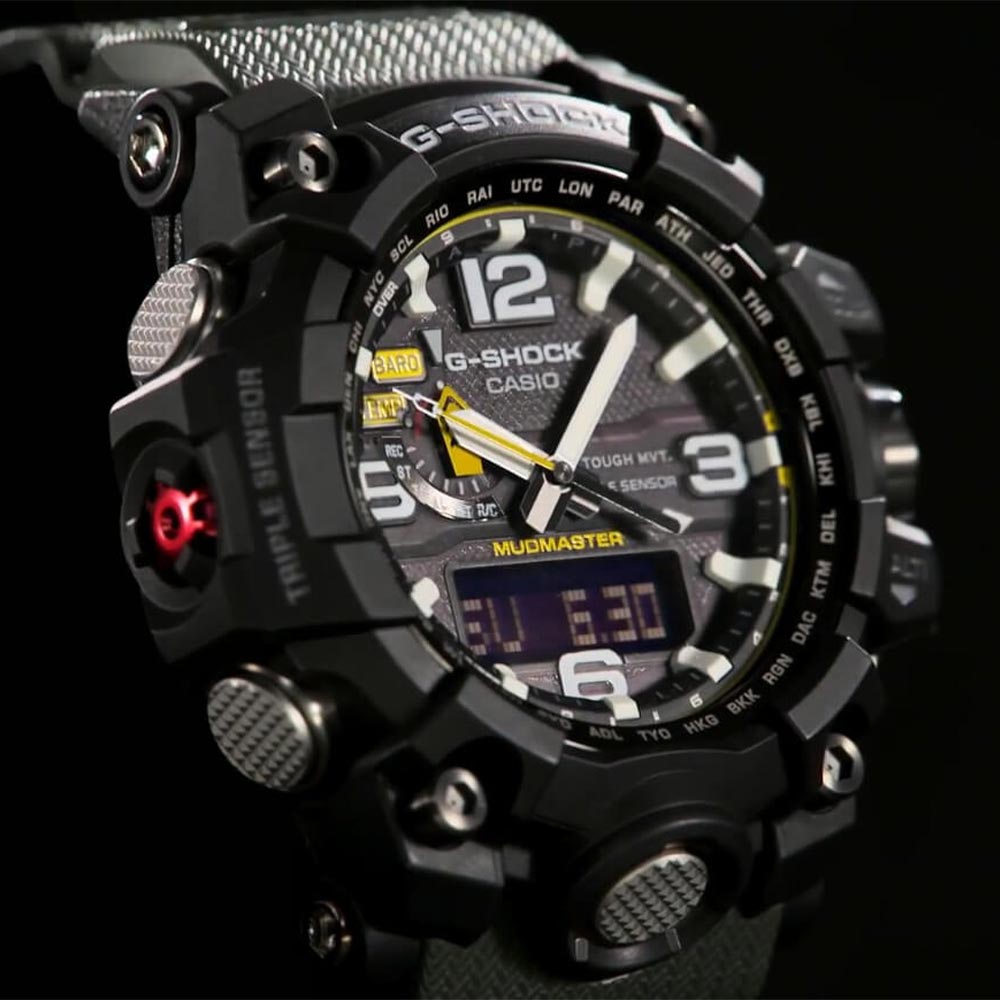

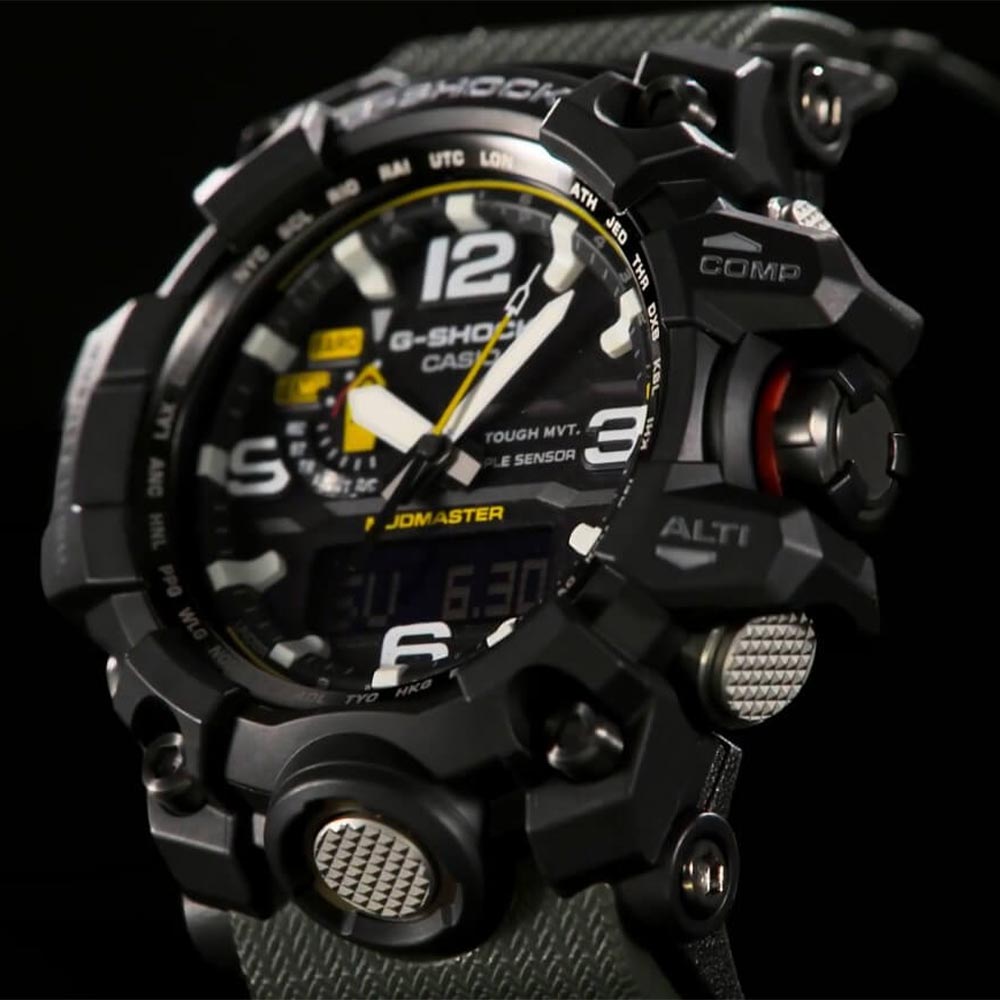

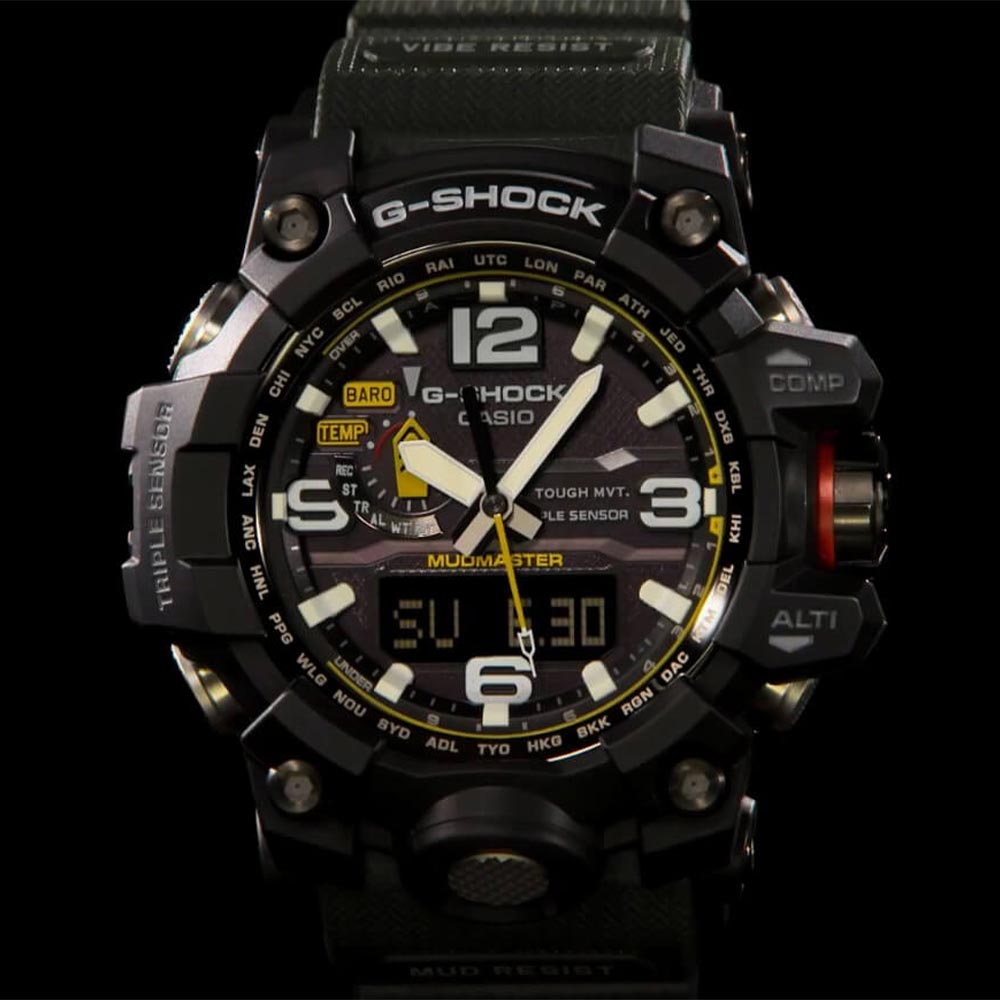

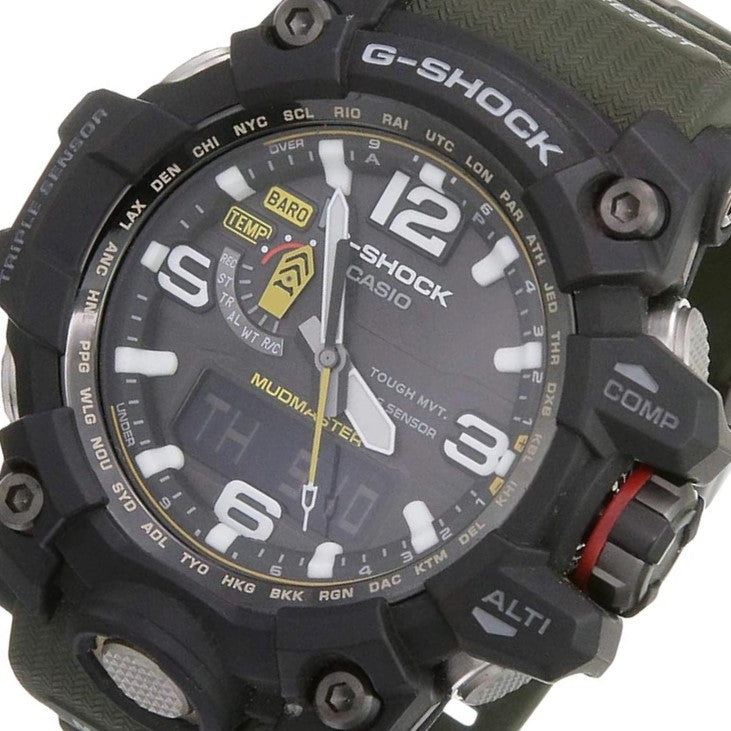

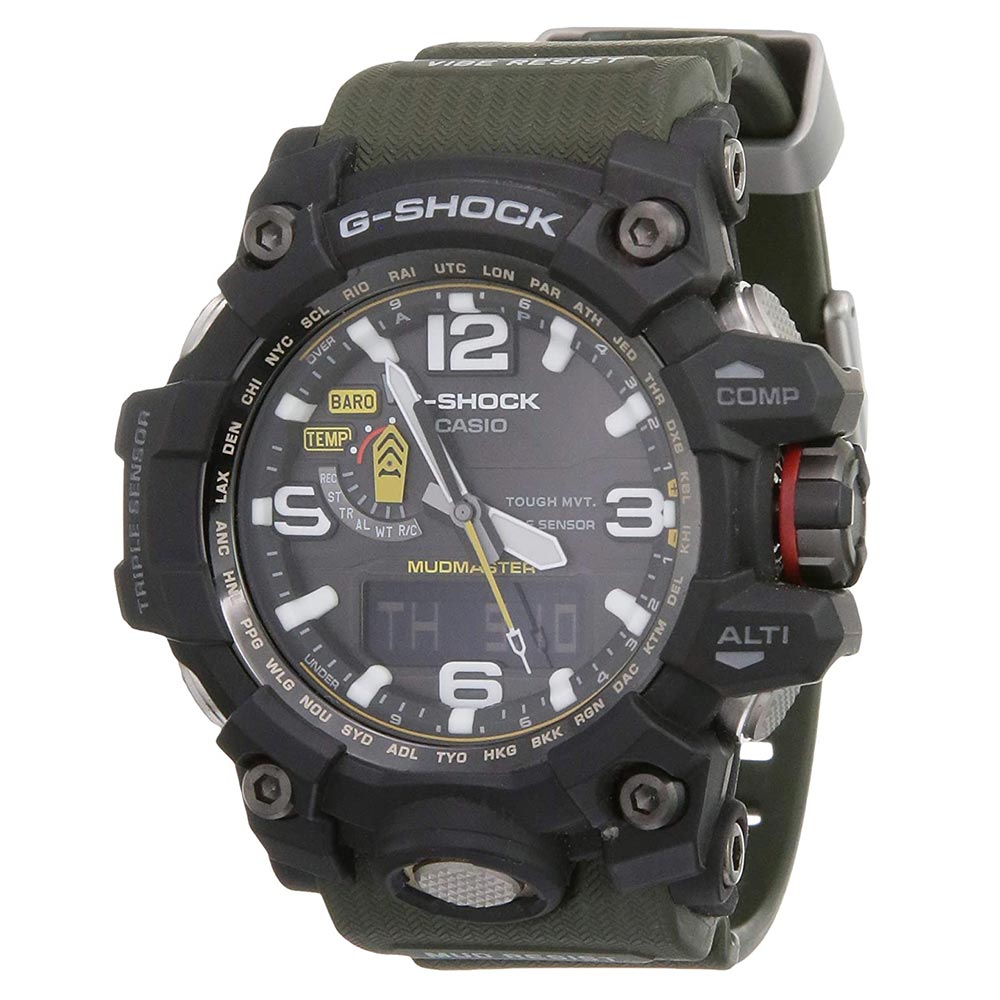

Introducing a new basic G-SHOCK brand black MUDMASTER model for the MASTER OF G Series watches with special functions for use under extreme conditions on the land, on the sea, and in the air. The extreme black and minimal colouring of this model helps to ensure that vital information is clear and easy to read, even under the harsh conditions encountered by rescue teams and others who work in extreme environments.
The distinctive G-SHOCK black colouring of this model gives it a no-nonsense look of serious toughness.
NEW MUD RESISTANCE + TRIPLE SENSOR
This new MUDMASTER model was created especially for this whose work takes it into areas where piles of rubble, dirt, and debris are present.
A special vibration-resistant construction lets them stand up to wear while operating cutters, crushers, drills and other heavy machinery to clear way large obstacles. This is CASIO's first analog watch to come with Mud Resist construction, which helps to ensure that nothing gets into the watch when down and dirty work takes you deep into the dirt and sludge. Multiple gaskets are used on the pipes that guide buttons and shafts, which keeps mud out. These pipes not only act to protect buttons from impact, they also enhance button operation. The screw-in force of the screw lock bezel on an internal gasket further increases mud resistance. A new bezel structure lets you visually check whether the bezel has been screwed in adequately.
In addition, Triple Sensor Version 3 capabilities provide instant access to direction, barometric pressure, and temperature information when needed under tough conditions.
The face of the watch is marked with large Arabian numerals as 12, 3, 6, and 9 o'clock for easy reading. The face is illuminated by a double LED light and protected by a sapphire crystal to ensure high visibility under virtually any conditions imaginable.

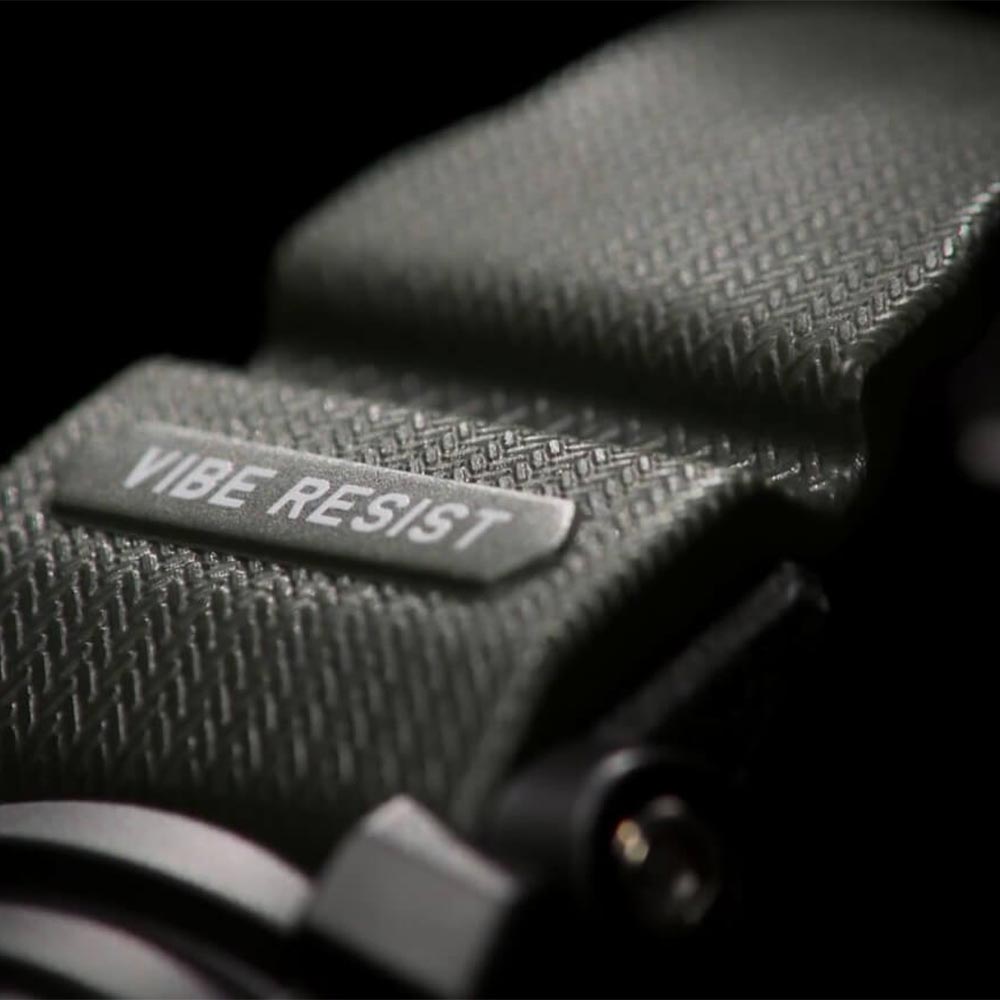

The band surface is processed to resemble a cloth band texture, and the hour and minute hands are shaped with points that make them resemble warning markers. All buttons have a checkered surface for surer operation, and the overall design is tough and rugged.
Vibration Resistant Structure
Digital compass, barometric pressure/altitude, temperature readings Double LED light illuminates the face and digital display for outstanding readability.
Multiband 6 (Automatically adjusts time settings based on reception of one of the six-time calibration signals around the globe: Japan (2), China, United States, England, Germany.)
Screw Lock Crown
Sapphire Glass with non-reflective coating
200-meter water resistance
Case / bezel material: Resin / Stainless steel
Double LED light
LED light for the face (Full auto LED light, selectable illumination duration, afterglow)
LED backlight for the digital display (Full auto LED light, selectable illumination duration, afterglow)
Tough Solar (Solar powered)
Time calibration signal reception
Auto receive up to six* times a day (remaining auto receives cancelled as soon as one is successful)
*5 times a day for the Chinese calibration signal
The latest signal reception results
Time Calibration Signals
Station name: DCF77 (Mainflingen, Germany)
Frequency: 77.5 kHz
Station name: MSF (Anthorn, England)
Frequency: 60.0 kHz
Station name: WWVB (Fort Collins, United States)
Frequency: 60.0 kHz
Station name: JJY (Fukushima, Fukuoka/Saga, Japan)
Frequency: 40.0 kHz (Fukushima) / 60.0 kHz (Fukuoka/ Saga)
Station name: BPC (Shangqiu City, Henan Province, China)
Frequency: 68.5 kHz
The auto hand home position correction
Measures and displays direction as one of 16 points
Measuring range: 0 to 359°
Measuring unit: 1°
60 seconds continuous measurement
Hand indication of north
Magnetic declination correction
Measuring range: –700 to 10,000 m ( –2,300 to 32,800 ft.)
Measuring unit: 1 m (5 ft.)
Hand indication of altitude differential
Manual memory measurements (up to 30 records, each including altitude, date, time)
Auto log data (High/low altitudes, cumulative ascent and descent)
Others: Relative altitude readings (±100m /±1000m),
Selectable measurement interval: 5 seconds or 2 minutes
*1 second for first 3 minutes only
*Changeover between meters (m) and feet (ft)
Display range: 260 to 1,100 hPa (7.65 to 32.45 inHg)
Display unit: 1 hPa (0.05 inHg)
Hand indication of pressure differential
Atmospheric pressure tendency graph
Barometric pressure tendency information alarm (beep and arrow indicates significant changes in pressure)
*Changeover between hPa and inHg
Display range: –10 to 60°C (14 to 140°F)
Display unit: 0.1°C (0.2°F)
*Changeover between Celsius (°C) and Fahrenheit (°F)
29 time zones (29 cities + coordinated universal time), daylight saving on/off, Home city/World time city swapping
Measuring capacity: 23:59'59.99''
Measuring modes: Elapsed time, split time, 1st-2nd place times
Measuring unit: 1 second
Countdown range: 60 minutes
Countdown start time setting range: 1 second to 60 minutes (1-minute increments)
5 daily alarms
Hourly time signal
Hand shift feature (manual or auto (during altitude, barometric pressure, and temperature measurement))
Battery level indicator
Power Saving (display goes blank and hands stop to save power when the watch is left in the dark)
Full auto-calendar (to year 2099)
Button operation tone on/off
Analog: 3 hands (hour, minute (hand moves every 10 seconds), second)
Digital: Hour, minute, second, am/pm, month, date, day
Accuracy: ±15 seconds per month (with no signal calibration)
Approx. battery operating time:
6 months on rechargeable battery (operation period with normal use without exposure to light after charge)
25 months on rechargeable battery (operation period when stored in total darkness with the power save function on after full charge)
Size of case: 59.5×56.1×18mm
Total weight: 119g
What is Water Resistance?
Every watch is designed differently and the individual design of each watch determines how resistant to water pressure that watch is. You should always check the water resistance measure of a watch before using it, so you can decide when to wear it and when to take it off.
What is the ATM?
The ATM of a watch is short for Atmospheres and is a measure of the level of water pressure a watch is designed to withhold. A higher ATM means that a watch can withhold more water pressure, whilst a lower ATM mean that it was designed to withstand less pressure.
Metres: A Common Misconception
The ATM or water resistance of a watch can also be expressed as a number of metres, such as 10 metres. This does not mean that a watch can be taken 10 metres below sea level - although that is a common misconception. It is simply the number of times the pressure at sea level a watch can withstand without letting water in. For example, a watch with an ATM of 1 can withstand 10m of pressure, whilst a watch with an ATM of 5 can withstand 50m of pressure.
Using Your Watch in Water
The ATM of your watch will allow you to determine how and where you can use your watch. The ATM is usually engraved on the case-back of every watch. If you're having trouble finding it you may need to visit the watch manufacturer's website or contact them directly. You can use the chart below to guide you on using your watch in water. For example, if your watch has an ATM of 5, you can safely use it when you're washing hands and if it's raining outside, but you should not take it diving, swimming, bathing or showering.
Swimming, Bathing or Showering With Your Watch
The Watch Factory recommends purchasing a watch of at least 20ATM if you wish to wear your watch whilst swimming, bathing or showering. Wearing a watch with a lower ATM whilst swimming, bathing or showering may not always damage the watch, however we urge on the side of caution due to the delicate nature of watches.
Water Getting Into Your Watch
The internal mechanisms that keep your watch ticking are protected from water by the case, crown and seals that prevent water from getting in. Damage to any of these parts of your watch may void your watch's water resistance and cause moisture to get in. A common issue is when the crown has come loose and the seal has been damaged, which allows moisture to get in. If you believe that there is any damage to your watch, it is best to get it assessed by a watch maker who can check the water resistance is intact.
