Casio G-Shock Bluetooth G-Squad Blackout Digital Men's Watch - GBD800-1B
This is the latest additions to the G-SQUAD lineup of sports watches from G-SHOCK. This black model is suitable for everyday wear in addition to sports wear. The GBD-800 base model features a multi-segment digital display to improve readability and operation while engaged in sports.

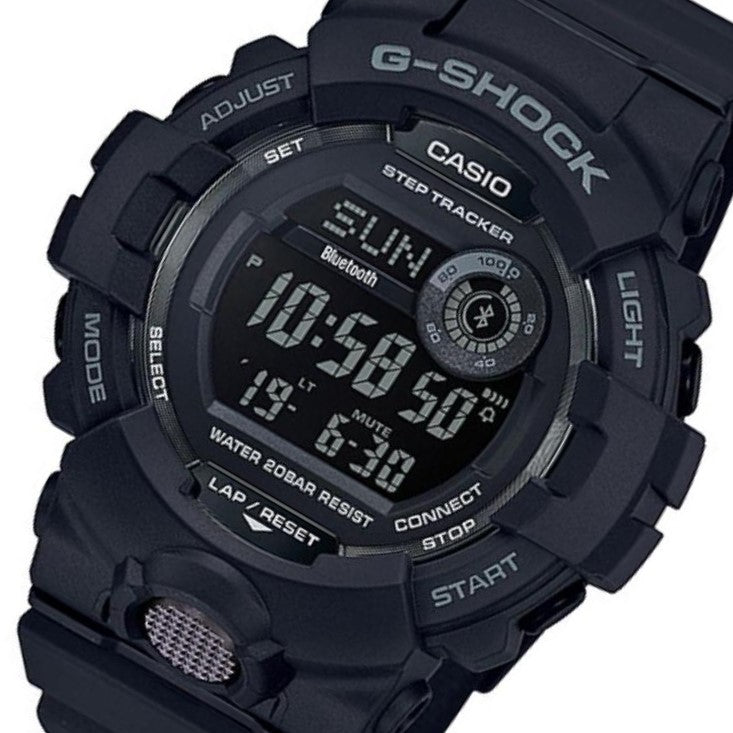

The LCD is divided into upper, middle, and lower sections, and there is a digital dial in the upper right. Each display area shows different, measurement, timekeeping, and other information, which provides useful data about your daily activities. A metal* front button and vapor deposition face add elegant colours for striking designs.
Function-wise, this watch links with the G-SHOCK Connected phone app to provide access to a number of functions that enhance your workouts. Daily health and fitness support functions include a 3-axis accelerometer that keeps track of your step count, a Multi-Timer that lets you create up to 20 timer combinations of five timers each, memory for up to 200 lap records, and more. The app also makes it possible to maintain step count logs with five exercise intensity levels, to calculate the calories you burn, to specify a daily step target, to create timer combinations and send them to the watch, to store stopwatch measurement data, to view data, and more. All of this combines to help you plan and record your workouts, making them more effective and enjoyable.
Other features include app-based auto time setting correction and other features for more efficient timekeeping, and an Auto LED Light to facilitate workouts in areas where lighting is dim.
Back wings on the inside of the bands where they connect to the case, a new band ring shape that prevents sliding, and more band holes to allow better tightness adjustment, all add up to a more comfortable fit. You can make fine adjustments to the band size.
A mid-size design that's optimal for running and training, Bluetooth®, phone app linking and much more make these new G-SQUAD models the perfect choice for sports and athleisure wear.
• Phone Linking
• Step Count Graph with five exercise intensity levels
• Calories burned display
• Combinable timers
• Stopwatch measurement data log
• Auto time adjustment (Four times a day)
• Easy watch setting
• World Time for approximately 300 cities
• Time swapping
• Alarm setting
• Step count using a 3-axis accelerometer (Step Count Graph, step goal progress graphic)
• Stopwatch with Target Time alarm (lap/split display switching, up to 10 Target Times, 200 lap time records)
• Interval timer with up to five time settings (Auto repeat up to 20 times, skip, auto start, alert sound)
• Super Illuminator with Auto light
• Case / bezel material: Resin
• Resin Band
• Shock Resistant
• Mineral Glass
• 200-meter water resistance
• LED backlight (Super Illuminator)
Auto light switch, selectable illumination duration (1.5 seconds or 3 seconds), afterglow
• Mobile link (Wireless linking using Bluetooth®)
• Step count using a 3-axis acceleration sensor: 0 to 999,999 step count display range
Step Goal Progress Display (step count goal setting range: 1,000 to 50,000, 1,000-step increments)
Step Count Graph: Hourly step count for the past 7 hours on a 6-level graph
Power Saving: Auto sensor sleep state entry after fixed period of non-activity
• Dual time (Home time swapping)
• 1/100-second stopwatch
00'00''00~59'59''99 (for the first 60 minutes)
1:00'00~23:59'59 (after 60 minutes)
1/100 second (for the first 60 minutes)
1 second (after 60 minutes)
Recorded data: Up to 200 records (measurement start month, date, lap/split times)
Target Time alarm up to 10 Target Time settings
• Countdown timer
Timer for interval measurement (up to five time settings)
Measuring unit: 1 second
Input range: 00'00" to 60'00" (1-second increments)
Others: Auto-repeat (number of repeats settable from 1 to 20), auto-start
• 5 daily alarms
• Hourly time signal
• Full auto-calendar (to year 2099)
• 12/24-hour format
• Button operation tone on/off
• Regular timekeeping: Hour, minute, second, pm, year, month, date, day
• Accuracy: ±15 seconds per month (with no mobile link function)
• Approx. battery life: 3 years on CR2025
• Size of case : 54.1×48.6×15.5mm
• Total weight : 59g
What is Water Resistance?
Every watch is designed differently and the individual design of each watch determines how resistant to water pressure that watch is. You should always check the water resistance measure of a watch before using it, so you can decide when to wear it and when to take it off.
What is the ATM?
The ATM of a watch is short for Atmospheres and is a measure of the level of water pressure a watch is designed to withhold. A higher ATM means that a watch can withhold more water pressure, whilst a lower ATM mean that it was designed to withstand less pressure.
Metres: A Common Misconception
The ATM or water resistance of a watch can also be expressed as a number of metres, such as 10 metres. This does not mean that a watch can be taken 10 metres below sea level - although that is a common misconception. It is simply the number of times the pressure at sea level a watch can withstand without letting water in. For example, a watch with an ATM of 1 can withstand 10m of pressure, whilst a watch with an ATM of 5 can withstand 50m of pressure.
Using Your Watch in Water
The ATM of your watch will allow you to determine how and where you can use your watch. The ATM is usually engraved on the case-back of every watch. If you're having trouble finding it you may need to visit the watch manufacturer's website or contact them directly. You can use the chart below to guide you on using your watch in water. For example, if your watch has an ATM of 5, you can safely use it when you're washing hands and if it's raining outside, but you should not take it swimming or diving.
Swimming With Your Watch
The Watch Factory recommends purchasing a watch of at least 20ATM if you wish to wear your watch whilst swimming. Wearing a watch with a lower ATM whilst swimming may not always damage the watch, however we urge on the side of caution due to the delicate nature of watches.
Water Getting Into Your Watch
The internal mechanisms that keep your watch ticking are protected from water by the case, crown and seals that prevent water from getting in. Damage to any of these parts of your watch may void your watch's water resistance and cause moisture to get in. A common issue is when the crown has come loose and the seal has been damaged, which allows moisture to get in. If you believe that there is any damage to your watch, it is best to get it assessed by a watch maker who can check the water resistance is intact.
