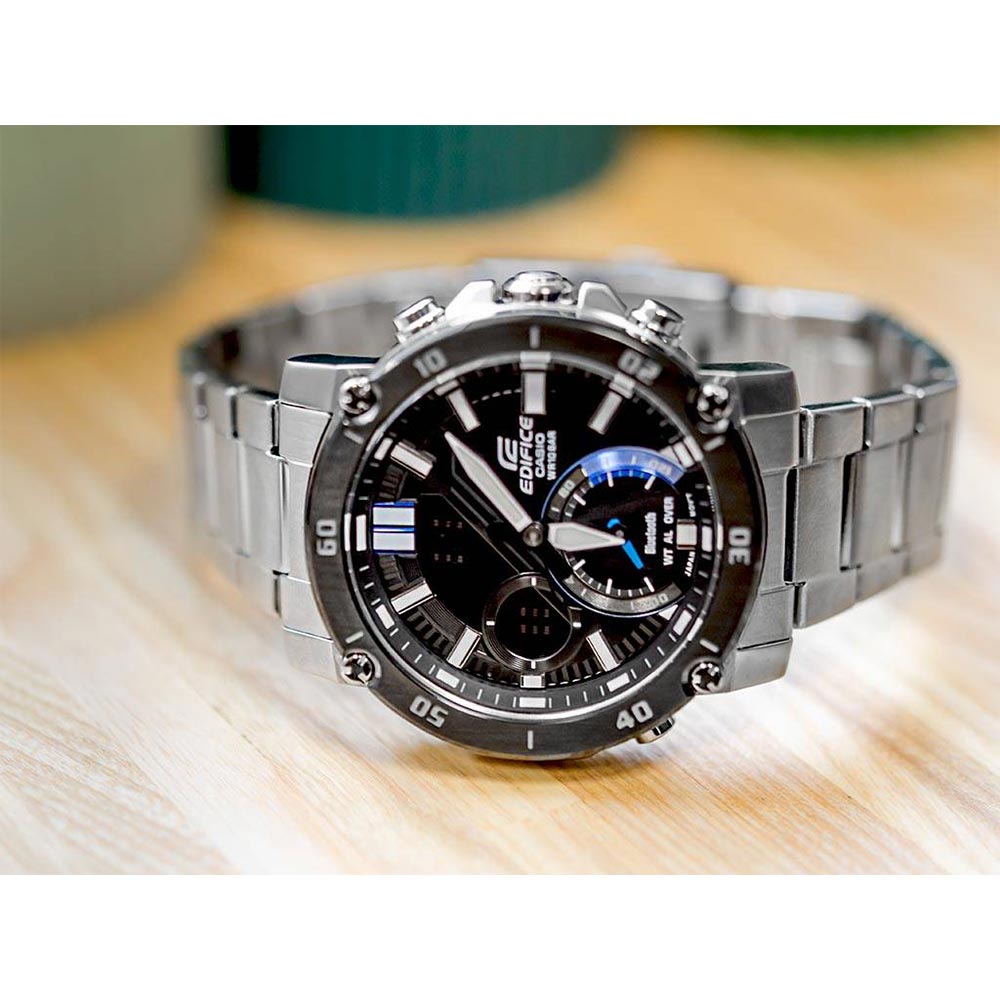

Casio Edifice Smartphone Link Men's Chrono Watch - ECB20DB-1A
Introducing the Smartphone Link ECB-20 Series from EDIFICE, the highperformance chronograph that incorporates direct feedback from racing teams to create innovative new timepieces under the concept of “Speed & Intelligence.”
The four screws that hold the bezel in place, and the orange, blue, and other accent colors on the inset dial create powerful and bold designs. At the heart of these models is a Smartphone Link module that was developed in response to requests from racing team members. Smartphone linking not only ensures accurate timekeeping, it also supports a schedule timer feature that was developed to allow management of team schedules, and automatic time zone correction that comes in handy during global travels. Whenever you travel to a different time zone, these watches will automatically* switch to the current time in your new zone. No button operation is required.
* When the watch is within a distance of about two meters from the phone.
Accurate Time System: The watch automatically connects with a phone by Bluetooth® to update its time setting.
World Time: The digital display shows the current time in another time zone. This lets you keep track of the current time in two time zones while traveling. You can also use your phone for quick and simple World Time city selection.
1/1000-second Stopwatch: Memory provides storage of up to 200 lap times that can be transferred to your phone.
Phone Finder: Long-pressing a watch button causes a tone to sound on your phone (as long as it is within range to receive a Bluetooth signal).
Auto LED Light: A high-brightness LED light illuminates the face and digital display when you angle the watch towards your face.
100-meter water resistance.
Case / bezel material: Stainless steel
One-touch 3-fold Clasp
Stainless Steel Band
Black ion plated case
100-meter water resistance
Double LED light
LED light for the face (Auto LED light, Super illuminator, selectable illumination
duration (1.5 seconds or 3 seconds), afterglow)
LED backlight for the digital display (Auto LED light, Super illuminator, selectable illumination duration (1.5 seconds or 3 seconds), afterglow)
Mobile link (Automatic connection, wireless linking using Bluetooth®)
Hand shift feature (Hands move out of the way to provide an unobstructed view of digital display contents)
38 time zones (38 cities + coordinated universal time), daylight saving on/off, auto summer time (DST) switching, Home city/World time city swapping
00'00"000~59'59"999 (for the first 60 minutes)
1:00'00"0~23:59'59"9 (after 60 minutes)
1/1000 second (for the first 60 minutes)
1/10 second (after 60 minutes)
Measuring modes: Elapsed time, lap time
Measuring unit: 1 second
Countdown range: 24 hours
Countdown start time setting range: 1 second to 24 hours (1-second increments, 1-minute increments and 1-hour increments)
5 daily alarms
Hourly time signal
Full auto-calendar (to year 2099)
Button operation tone on/off
Schedule beeper on/off
Date/month display swapping
Day display (days of the week selectable in six languages)
Analog: 2 hands (hour, minute (hand moves every 20seconds)), 1 dial (linked to each mode)
Digital: Hour, minute, second, pm, month, date, day
Accuracy: ±15 seconds per month (with no mobile link function)
Approx. battery life: 2 years on CR2016
2 Year International Casio Warranty
Size of case / Total weight
Size of case: 49.5×46×12.5mm
Total weight: 151g
What is Water Resistance?
Every watch is designed differently and the individual design of each watch determines how resistant to water pressure that watch is. You should always check the water resistance measure of a watch before using it, so you can decide when to wear it and when to take it off.
What is the ATM?
The ATM of a watch is short for Atmospheres and is a measure of the level of water pressure a watch is designed to withhold. A higher ATM means that a watch can withhold more water pressure, whilst a lower ATM mean that it was designed to withstand less pressure.
Metres: A Common Misconception
The ATM or water resistance of a watch can also be expressed as a number of metres, such as 10 metres. This does not mean that a watch can be taken 10 metres below sea level - although that is a common misconception. It is simply the number of times the pressure at sea level a watch can withstand without letting water in. For example, a watch with an ATM of 1 can withstand 10m of pressure, whilst a watch with an ATM of 5 can withstand 50m of pressure.
Using Your Watch in Water
The ATM of your watch will allow you to determine how and where you can use your watch. The ATM is usually engraved on the case-back of every watch. If you're having trouble finding it you may need to visit the watch manufacturer's website or contact them directly. You can use the chart below to guide you on using your watch in water. For example, if your watch has an ATM of 5, you can safely use it when you're washing hands and if it's raining outside, but you should not take it swimming or diving.
Swimming With Your Watch
The Watch Factory recommends purchasing a watch of at least 20ATM if you wish to wear your watch whilst swimming. Wearing a watch with a lower ATM whilst swimming may not always damage the watch, however we urge on the side of caution due to the delicate nature of watches.
Water Getting Into Your Watch
The internal mechanisms that keep your watch ticking are protected from water by the case, crown and seals that prevent water from getting in. Damage to any of these parts of your watch may void your watch's water resistance and cause moisture to get in. A common issue is when the crown has come loose and the seal has been damaged, which allows moisture to get in. If you believe that there is any damage to your watch, it is best to get it assessed by a watch maker who can check the water resistance is intact.
